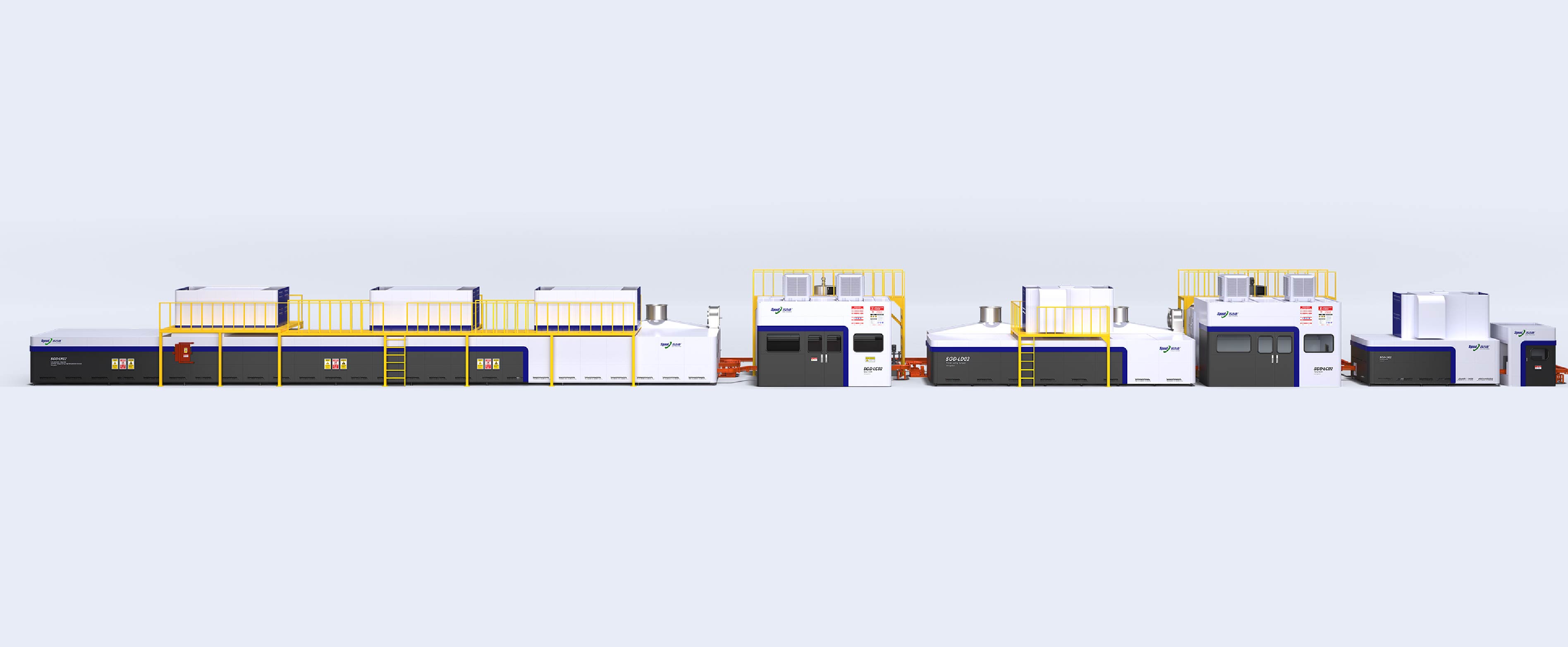

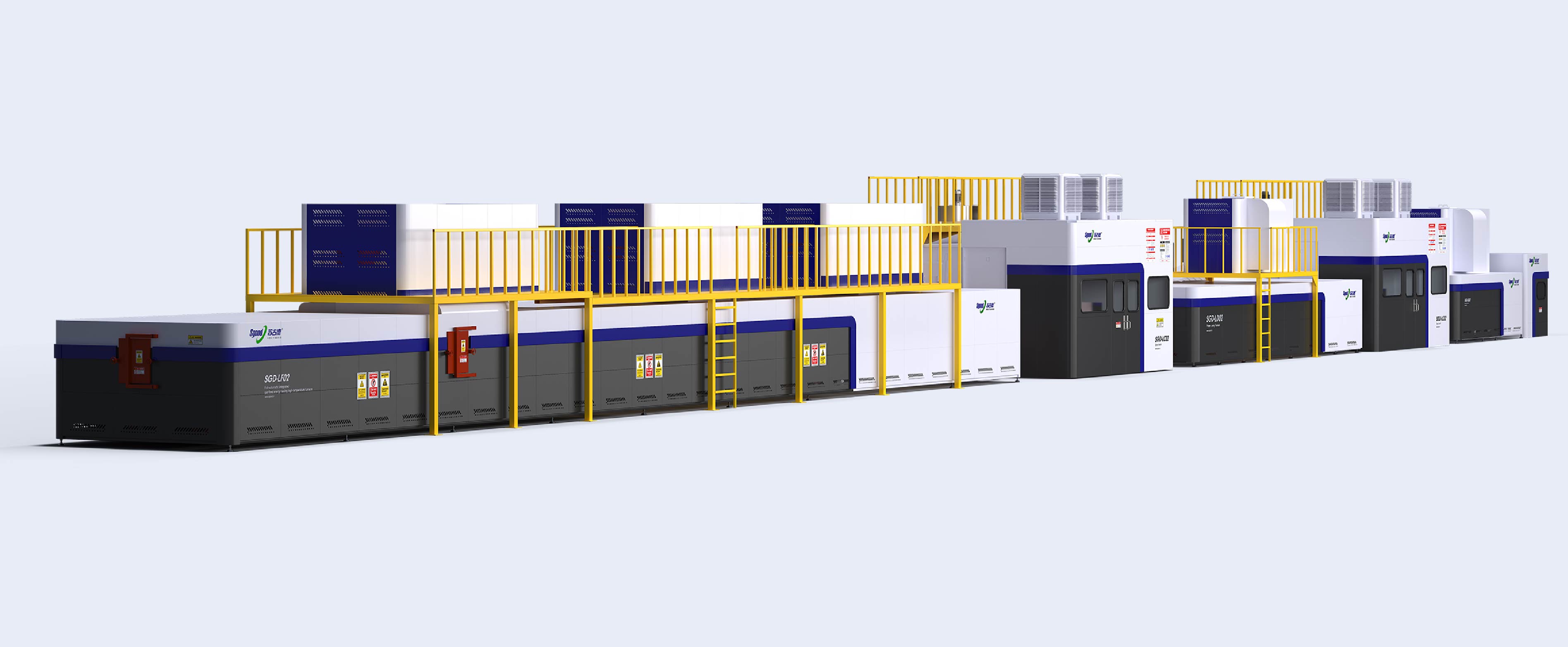

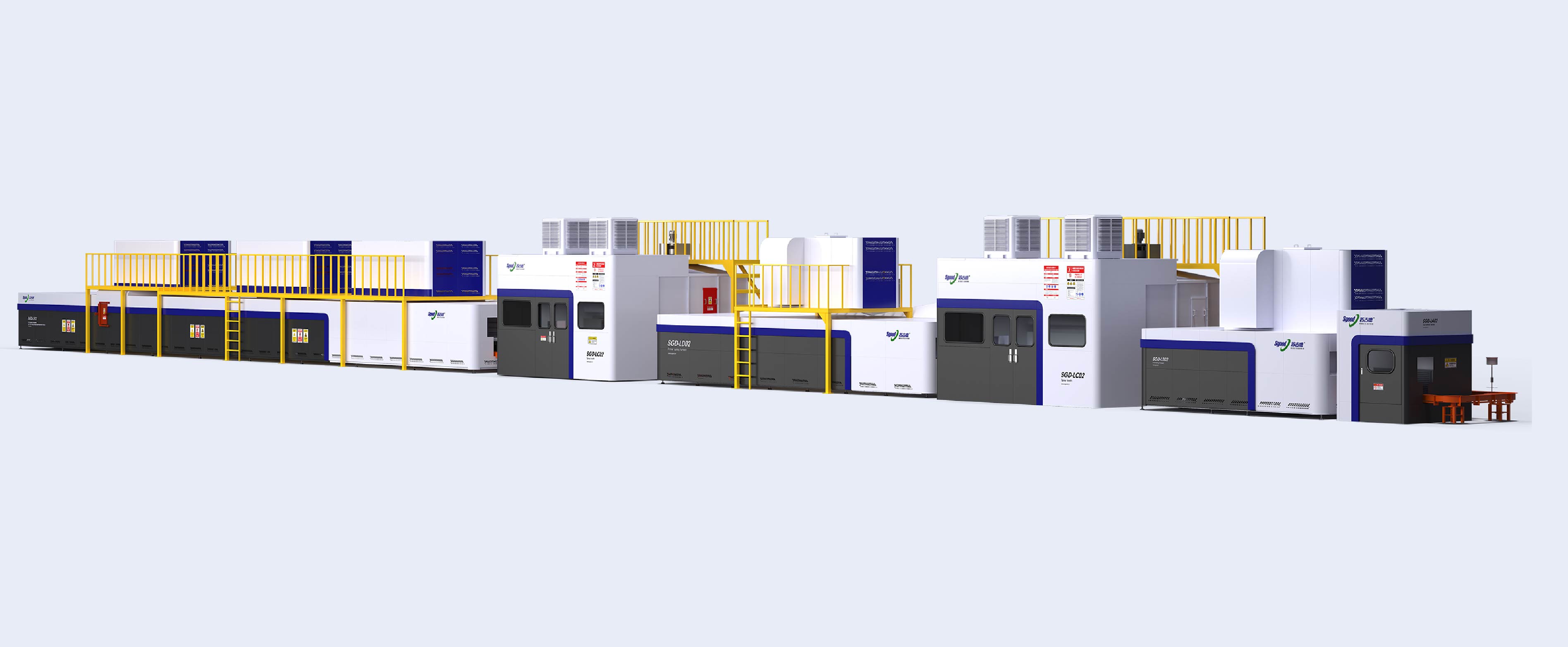

The product is a full-automatic energy-saving spraying assembly line for workpieces, which comprises a dedusting cabinet, a preheating furnace, a primer spraying room, a primer curing furnace, a finish spraying room, Three-stage waste heat recovery, two-stage waste heat recovery, one-stage waste heat recovery, and high-temperature curing section.

The product can automatically complete the whole paint spraying process, realizes the multistage recycling of heat energy, has high automation level, greatly increases the production efficiency of the product, and reduces the energy consumption.

Workpiece Size	User Selected
Total Power of Equipment	137.3KW（Customizable）
Equipment Dimensions	Length58mxWidth4.9mxHeight4.1m（Customizable）
Environmental Emission Standards	GB 16297-1996/GB 14554-1993
Electrical and Dust Explosion-proof Standards	User Selected

The heat energy is recycled in multiple stages, the energy consumption is saved, and the cost is reduced.

Workpiece special tooling can achieve one-time spray molding

Stable product quality
